Pentair Sta-Rite JW/JS Pump Impeller 1.0 HP C105-228PF

Description

DETAILS

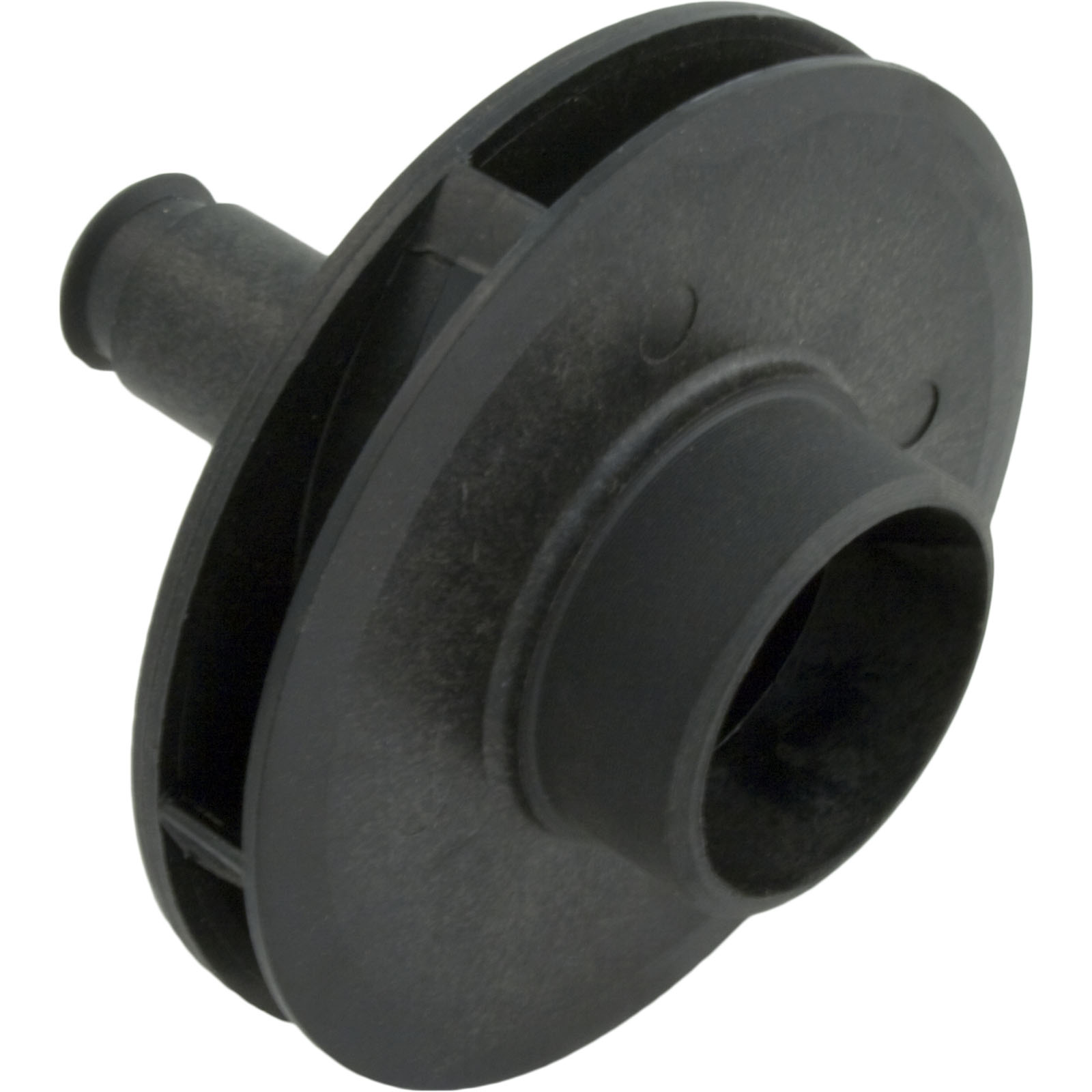

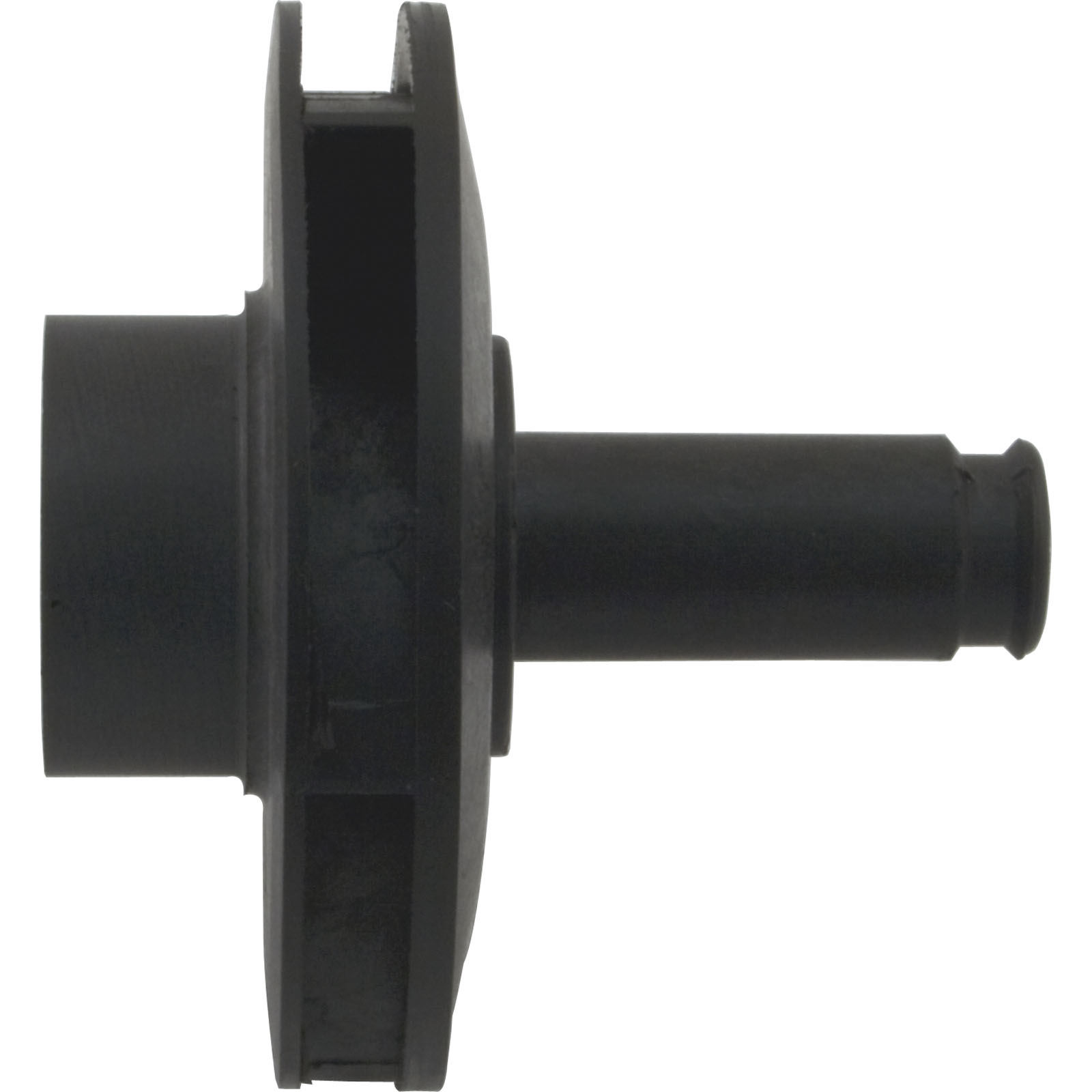

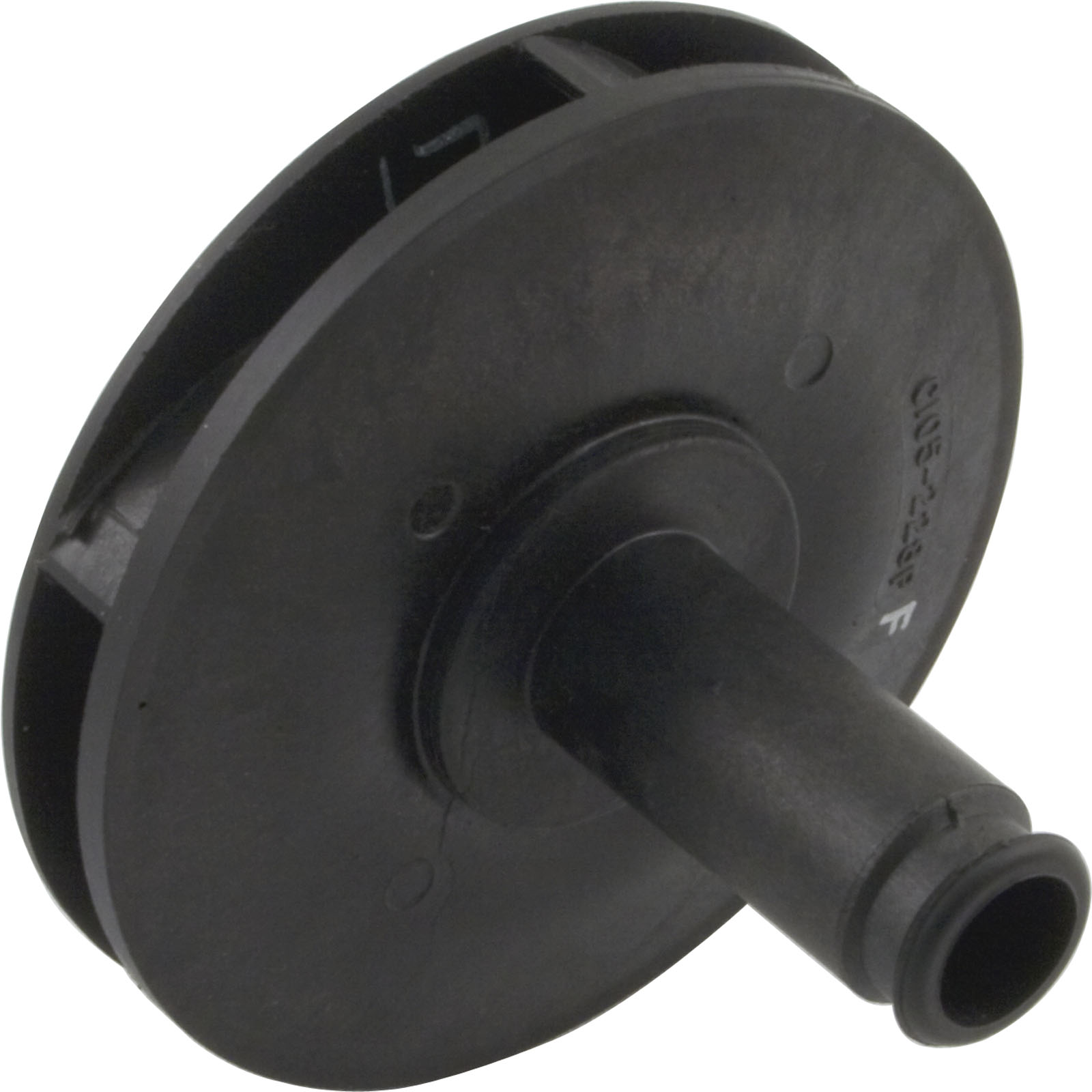

Pentair Sta-Rite JW/JS Pump Impeller 1.0 HP C105-228PF

• Closed face impeller made for the JW series above ground pool pump by Sta-Rite/Pentair.
• Rated at 1.0hp, it is used in a JW pump body,
• Must be installed on a 1.0hp (or greater)
• C-face motor with a threaded shaft.
• Shaft seal sold separately

Alternate Part Numbers

• 5051-08C , 600497 , 788379734077

Specification

• Impeller Type
  • Closed Face
• Impeller Diameter OD
  • 3-1/2"
• Vane Width ID
  • 5/16"
• Eye Diameter OD
  • 1-1/2"
• Eye Length
  • 3/4"
• Impeller Width OD
  • 9/16"
• Seal Seat Depth
  • 1/8"
• Shaft Length
  • 1-3/4"
• Shaft Diameter OD
  • 3/4"
• Seal Seat Diameter OD
  • 1-5/16"
• Manufacturer
  • Sta-Rite/Pentair
• Pump Application
  • JS Series
