Hayward SPX2605C Impeller Max-Flo/Super Pump .5 Hp/.75Hp

Description

DETAILS

Hayward SPX2605C Impeller Max-Flo/Super .5 Hp/.75Hp

• Closed face impeller made for the SP2600/SP2800/SP3000 series Max-Flo/Super pool/spa pump
• Rated at 1/2hp, it is used in a SP2600/SP2800/SP3000 pump body
• Must be installed on a 1/2hp (or greater)
• C-face motor with a threaded shaft.

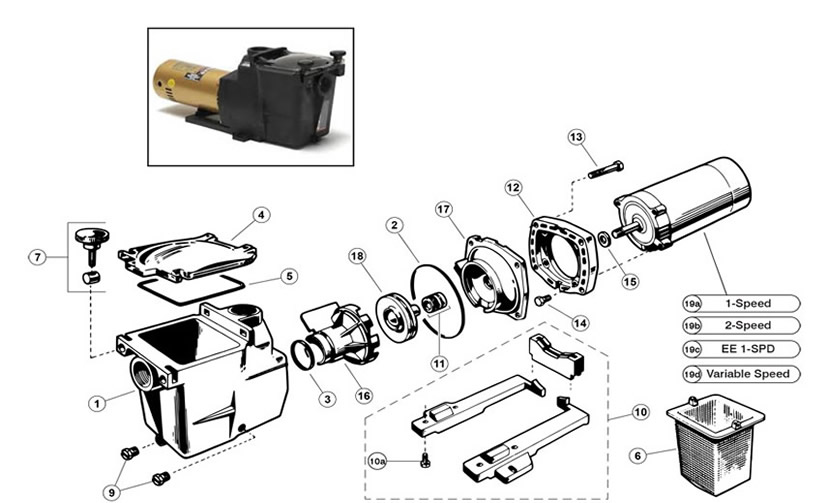

• Part #18 in exploded diagram

Alternate Part Numbers

• 40417 , 5110-10BA , 610377041096 , HAY-101-2051 , SP2605C

Specifications

• Impeller Type
  • Closed Face
• Impeller Diameter OD
  • 4-3/8"
• Vane Width ID
  • 3/16"
• Eye Diameter OD
  • 2-1/8"
• Eye Length
  • 13/16"
• Impeller Width OD
  • 1/2"
• Seal Seat Depth
  • 1/8"
• Shaft Length
  • 15/16"
• Shaft Diameter OD
  • 11/16"
• Seal Seat Diameter OD
  • 1-3/8"
• Manufacturer
  • Hayward
• Pump Application
  • SP2600, SP2800, SP3000
