Hayward SP1580 Power-Flo LX Impeller 2.0 Hp SPX1525CH

Description

DETAILS

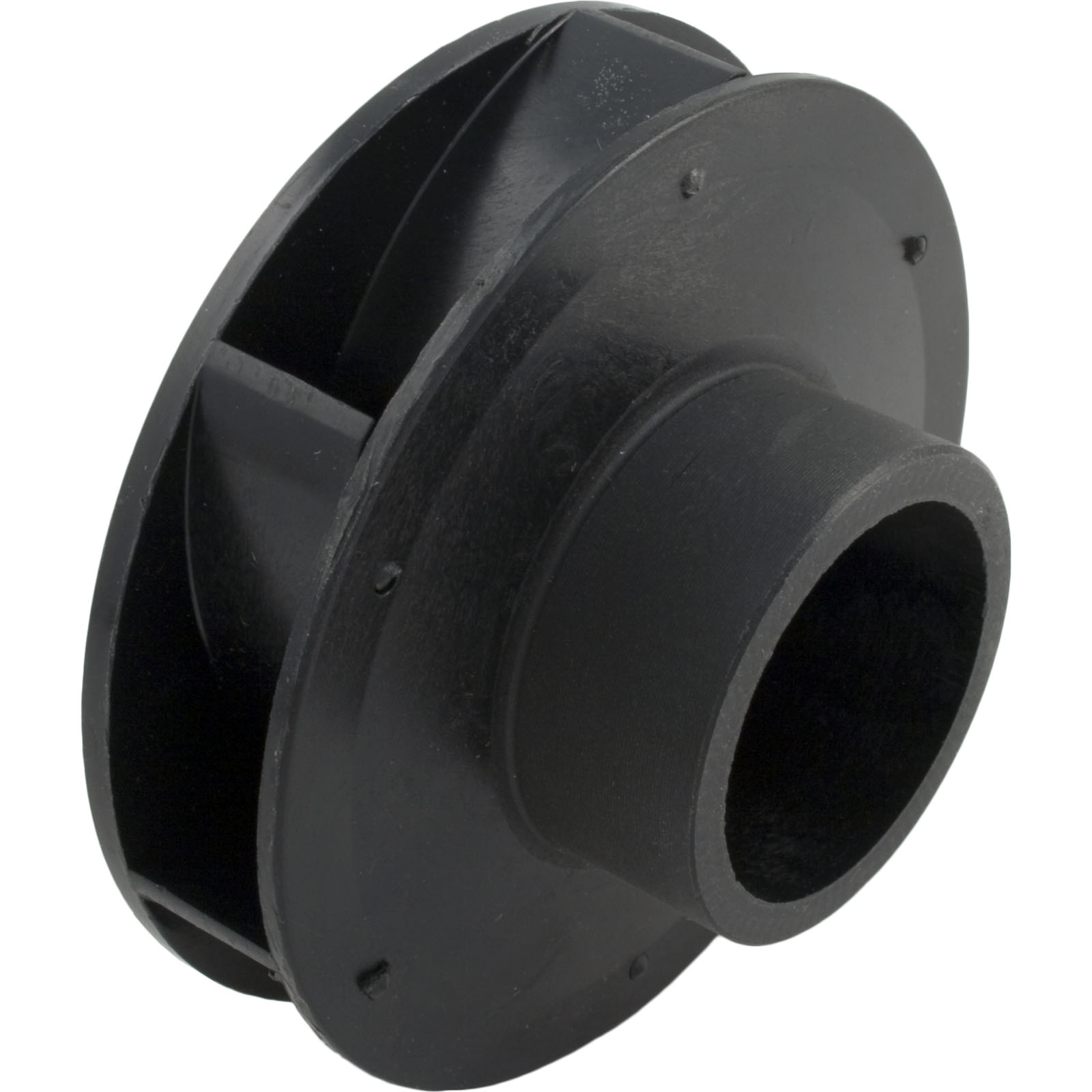

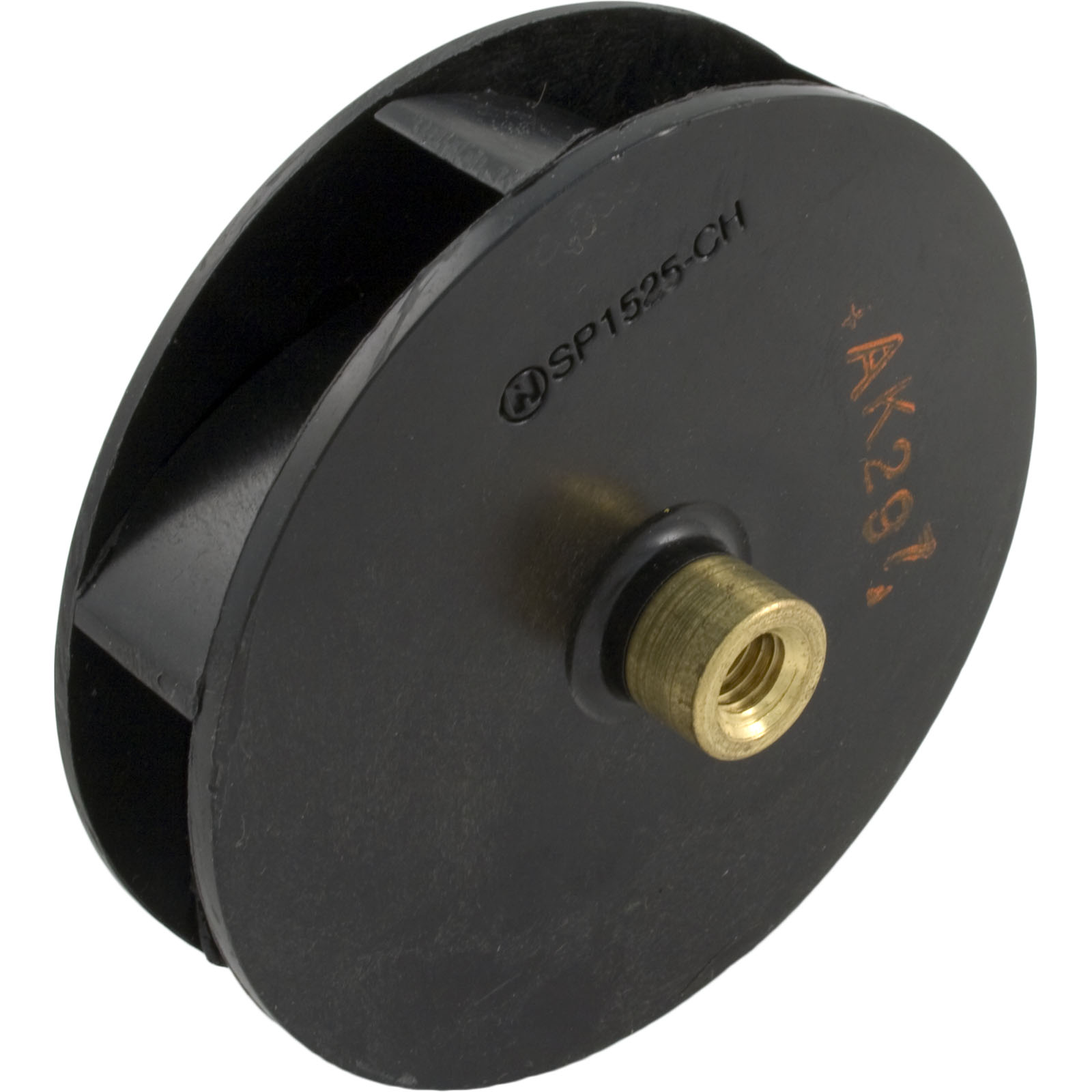

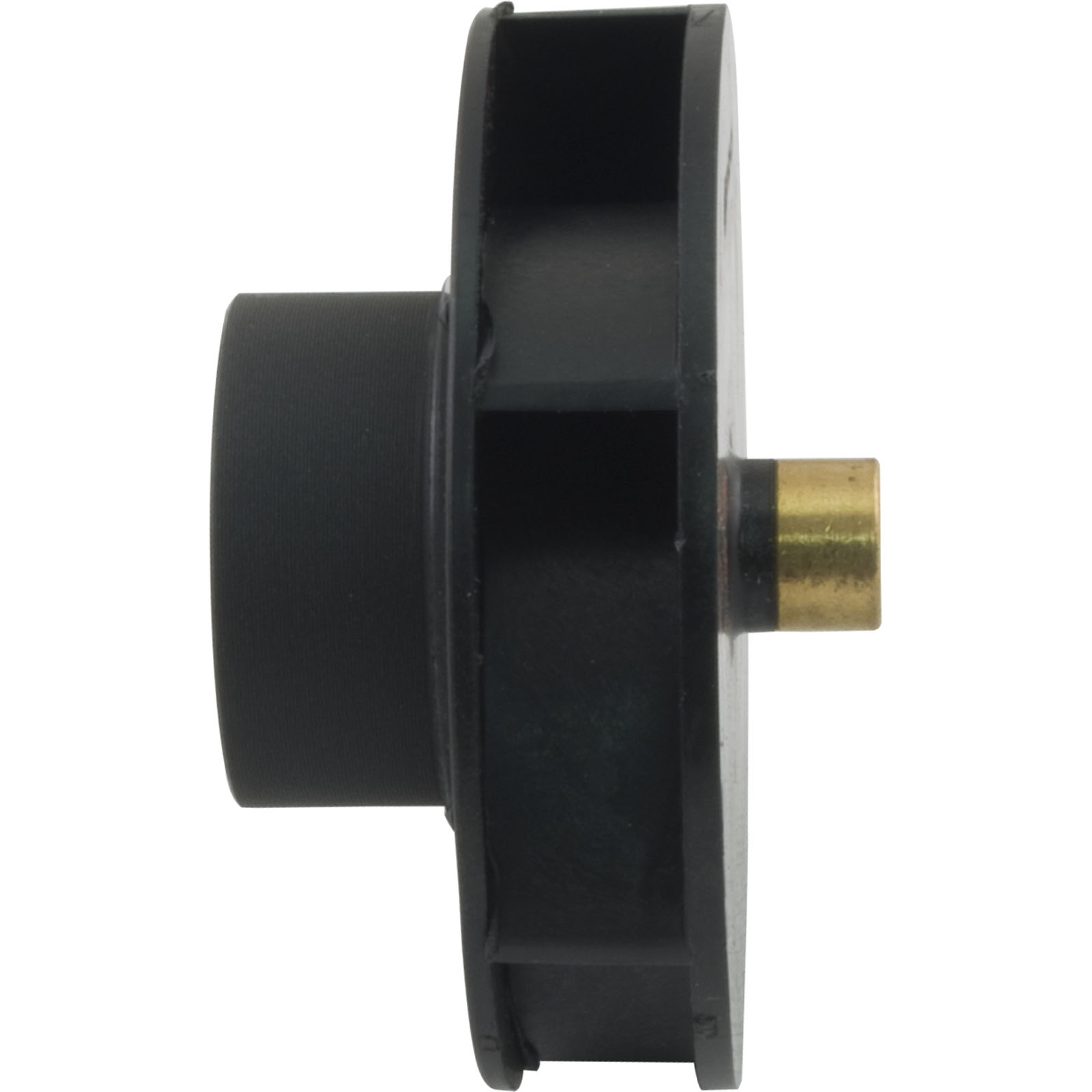

Hayward SP1580 Power-Flo LX Impeller 2.0 Hp SPX1525CH

• Closed face impeller made for the SP1580 series pool/spa pump by Hayward
• Rated at 2.0hp it is used in a SP1580 wet end and must be installed on a 2 hp (or greater).
• Shaft seal sold separately

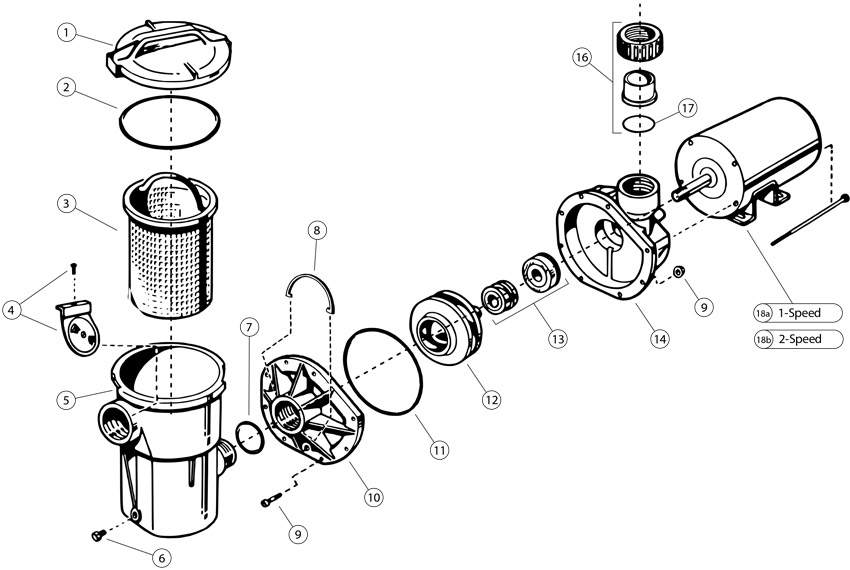

• Part #12 in exploded diagram

Alternate Part Numbers

•  5111-075 , 5111-07J , 601268 , 610377039857 , 6540-975 , SP-1525-CH

Specifications

• Impeller Type
  • Closed Face
• Impeller Diameter OD
  • 3-3/4"
• Vane Width ID
  • 5/8"
• Eye Diameter OD
  • 1-7/8"
• Eye Length
  • 3/4"
• Impeller Width OD
  • 7/8"
• Seal Seat Depth
  • n/a
• Shaft Length
  • 1/2"
• Shaft Diameter OD
  • 5/8"
• Seal Seat Diameter OD
  • n/a
• Manufacturer
  • Hayward
• Pump Application
  • Power-Flo
